64 Channel NVR 8 SATA Ports
+ KDV
64 Channel NVR 8 SATA Ports

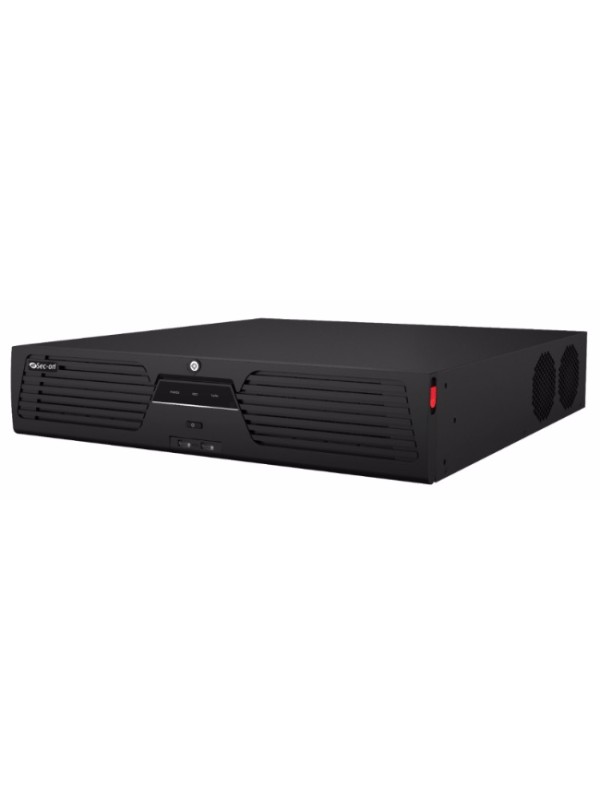

Sec-on 64 Channel NVR 8 SATA Ports
- 64 channels, 400Mbps bandwidth
- 2U chassis
- 8 SATA interfaces
- 14TB capacity for each disk
- USB interface: front panel: 2 X USB 2.0; rear panel: 2 X USB 3.0
Video | |
Number of Channels | 64 Channel |
Hard Disk | |
Kapasite | 14 TB |
SATA | 8 SATA interfaces |
Interface Unit | |
Alarm Input/ Output | 16/9 |
External interface | |
USB Interface | Front panel: 2 X USB 2.0; Rear panel: 2 X USB 3.0 |
General Features | |
Chassis Type | 2U |
Consumption | ≤ 50 W |
Power Supply | 100 to 240 VAC, 50 to 60 Hz |
Work Importance | 10% to 90% |
Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Dimension | 445 x 465 x 93 mm (17.5'' x 18.3'' x 3.7'') |
Weight | ≤ 10kg (22 Ib) |
